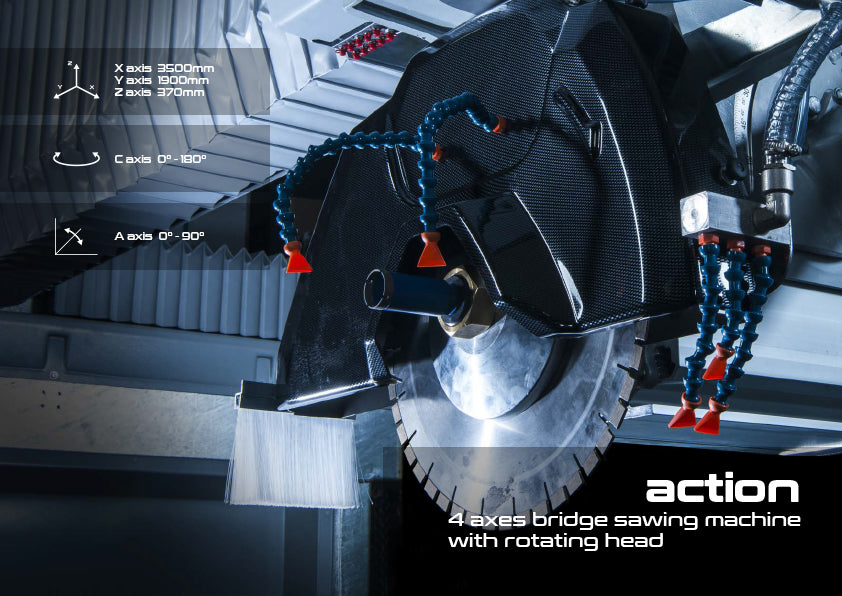

Action is a modern monobloc bridge saw with tilting head and hot zinc coated frame for an exceptionally long-lasting sturdiness and accuracy. It features 4 interpolated axes travelling on steel guideways with revolving balls and steelbands with revolving rollers protected by bellows and lubricated by a centralized system.

REQUEST A QUOTE

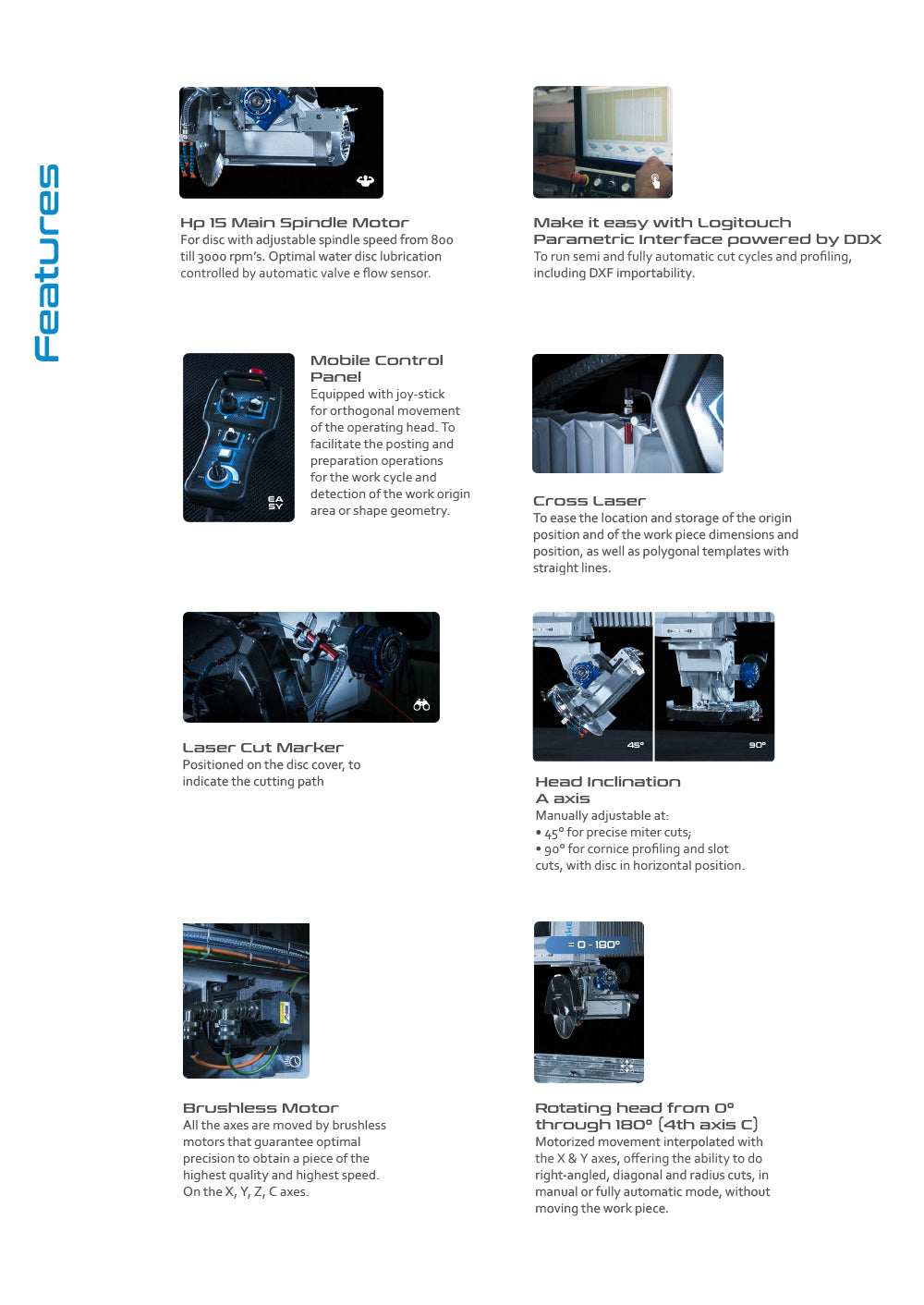

To ensure high stiffness and positioning accuracy the machine is equipped with brushless motors for 4 axes movement and a " no-play” reducer on the C axis.

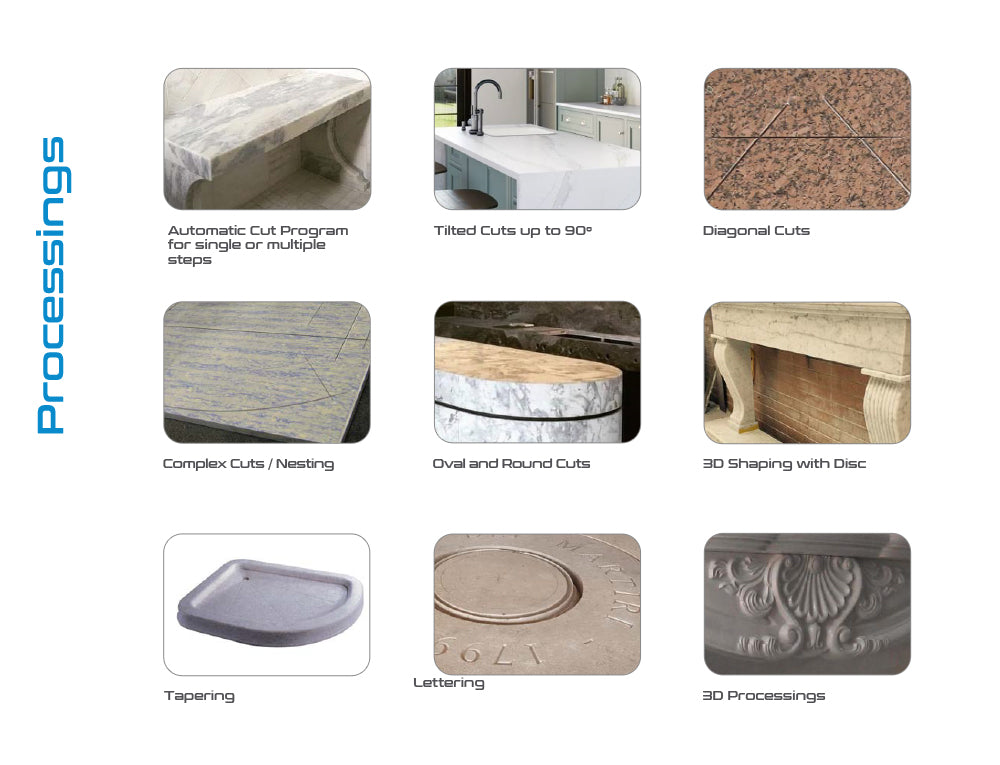

The 0°-90° tilting head with adjustable 45° reference stop along with the 0°-180° rotation ensure a highly productive and versatile machine with the highest degree of comfort for the operator.

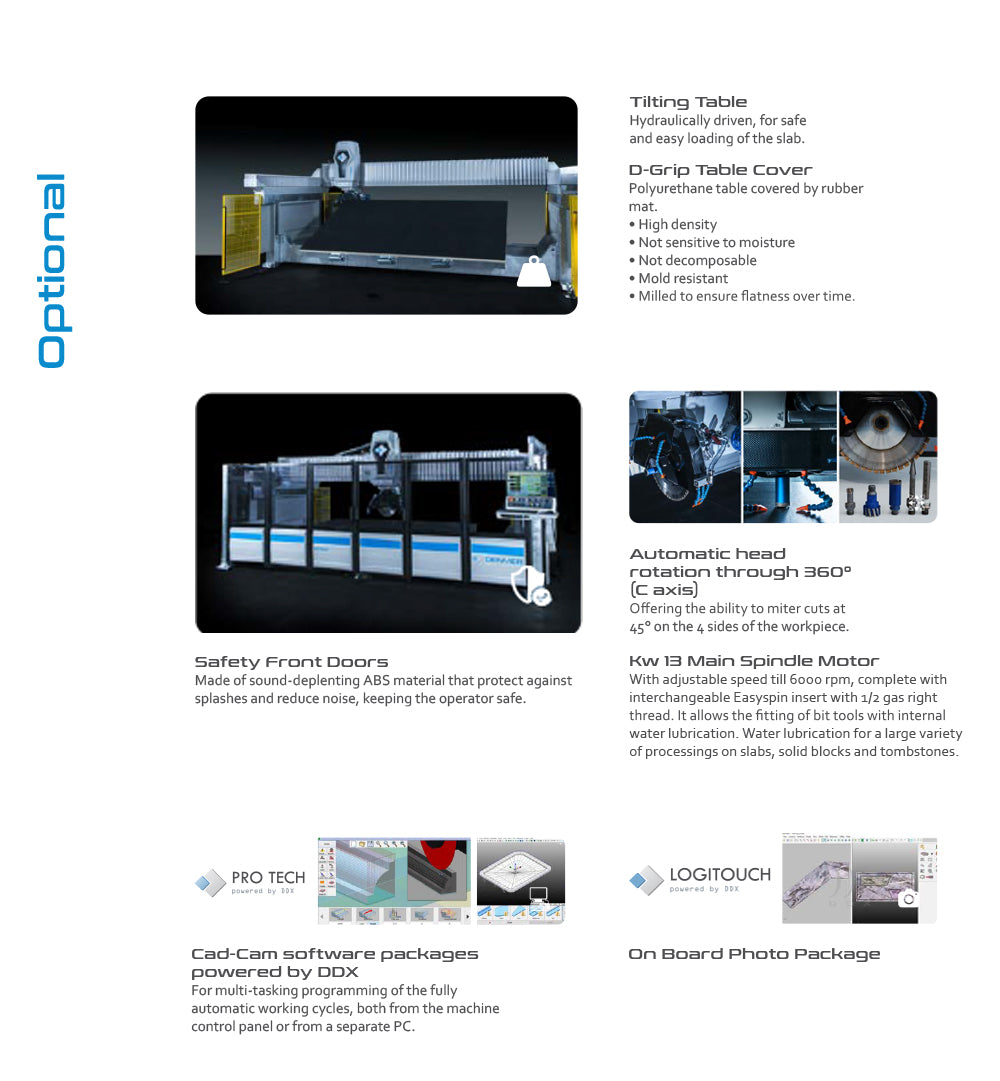

The machine is equipped with a software interface performing, smart and intuitive programming by icons and with software library with available bidimensional artifacts. With enables options, and thanks to brushless motor rotation of the head can reach C360 °, furthermore by spindle equipped with ½ gas fitting, Action can perform machining with tools and grinding wheels Just like a CNC machine.
